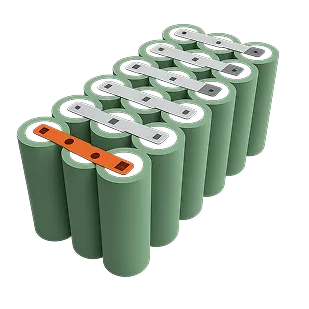

Perkons Energy 6S2P Battery Pack

The Perkons Energy 6S2P Battery Pack combines 12 Tenpower 50XG 21700 cells (5 000 mAh, 90 A each) in a 6-series 2-parallel arrangement housed in a compact 313.9 mm linear chassis. It delivers 21.6 V nominal at 10 Ah (216 Wh), with a peak discharge of 180 A / 3.89 kW and a maximum charge current of 30 A. The linear cell grid (14 slots, 12 populated) is accessible via 7 busbars and accepts standard 22.5 mm pitch integration. Operating range spans −20 °C to 60 °C discharge and 0 °C to 45 °C charge.

Key Features

• 21.6 V nominal · 10 Ah · 216 Wh
• Peak discharge: 180 A / 3.89 kW
• 12 × Tenpower 50XG 21700 cells (6S2P)
• Compact linear form factor: 313.9 × 21.4 × 71.4 mm · 900 g
• Energy density: 240.0 Wh/kg
• Discharge range: −20 °C to 60 °C
