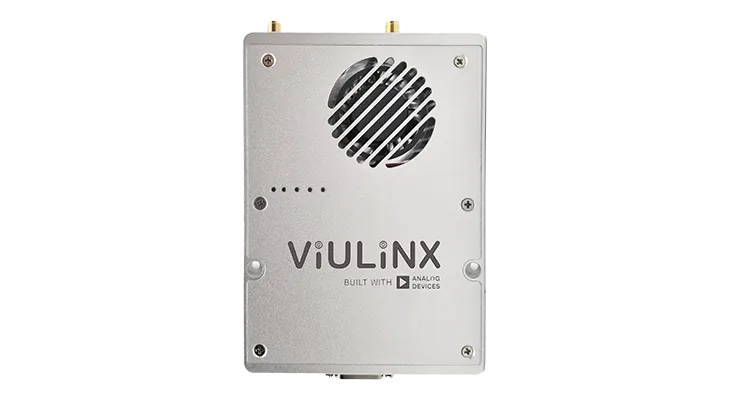

ViuMesh Pro 08H
Mesh datalink — 64-node, 1.4 GHz, 4 W × 2, 50 km
The ViuMesh Pro 08H is a dual-chain 1350–1450 MHz COFDM mesh datalink supporting up to 64 nodes with 1, 2, 3, 4 or unlimited hops. Each RF chain transmits at 4 W (≈36 dBm) through an SMA-K antenna, delivering 28 Mbps at 10 MHz bandwidth or 47 Mbps at 20 MHz, at ranges to 50 km. QPSK through 256QAM constellations and 1.25–20 MHz selectable bandwidth cover a wide range of link-budget and throughput trade-offs. The J30J 25-pin data connector breaks out dual Ethernet, dual RS-232, TTL and power in a 450 g unit rated from −40 °C to +55 °C. AES-256 encryption is available as an option over the standard DES-56 mode.
Key Features
- 64-node mesh network — 1 / 2 / 3 / 4 / unlimited hops
- Dual RF chain — 4 W × 2 (≈36 dBm each), SMA-K × 2
- Up to 47 Mbps @ 20 MHz / 28 Mbps @ 10 MHz
- 50 km range
- COFDM — QPSK, 16QAM, 64QAM, 256QAM
- AES-256 encryption (optional) · DES-56 standard
- 1350–1450 MHz · 1.25 / 2.5 / 5 / 10 / 20 MHz bandwidth
