Ground Control

ViuRC7 Pro

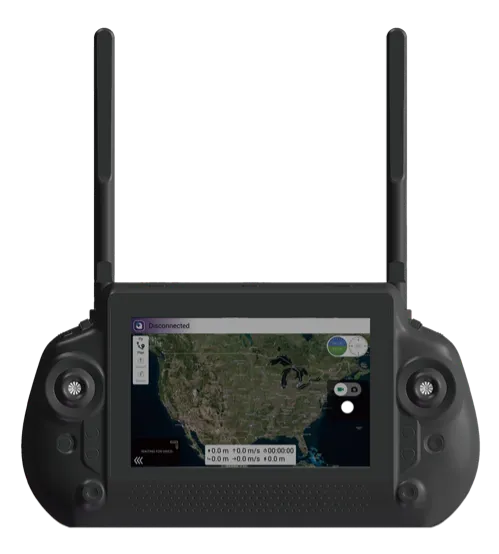

The ViuRC7 Pro is a self-contained handheld ground control station combining the operator display, control sticks and the RF link in a single unit. It runs Android, carries a multi-constellation GNSS receiver for operator positioning, and supports point-to-multipoint and relay topologies for multi-aircraft or extended-range operations.

Specifications

Working frequency	2.4 GHz / 5 GHz
Transmission power	26 dBm @ 2.4 GHz (≈400 mW); 24 dBm @ 5 GHz (≈250 mW)
Range	20+ km
Network topology	PTMP / relay
Operating system	Android 9.0 / 11.0
RAM	4 GB
Internal storage	64 GB
GNSS	GPS + GLONASS + BeiDou
Wi-Fi protocol	802.11 a/b/g/n/ac
Wi-Fi frequency	2.4 GHz / 5 GHz
Power consumption	12 W
Operating time	6 h
Charging time	3.5 h with 30 W charger
Operating temperature	−20 to +55 °C
Storage temperature	−20 to +65 °C
Charging temperature	Room temperature
